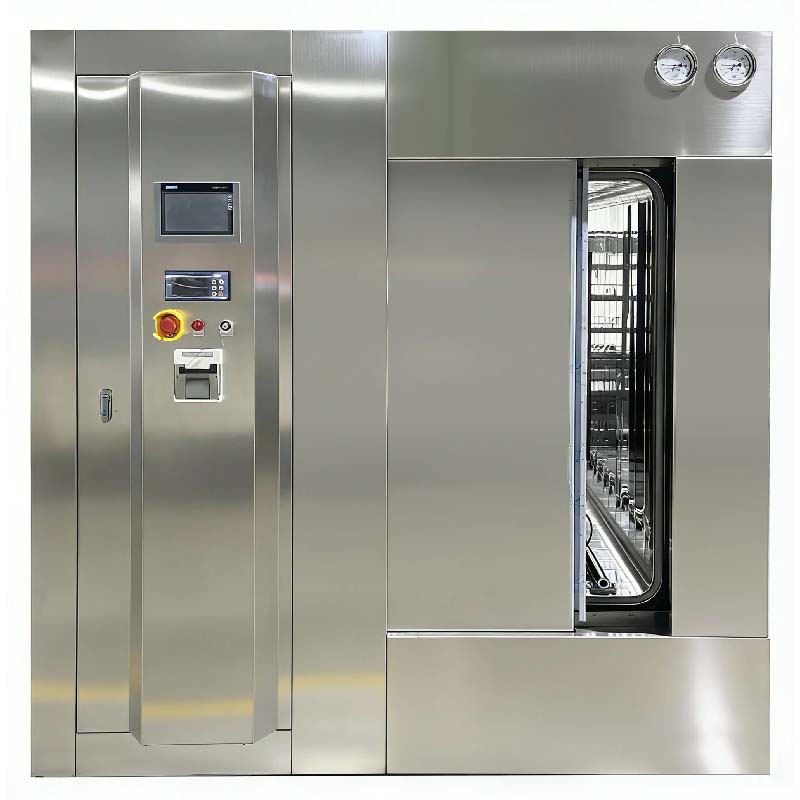

Traditional Chinese Medicine Sterilizer Steam Autoclave, MYP Series

MYP Series Using a sliding door structure, the door can move horizontally from side to side.
Traditional disinfection treatment on herbal medicines are cobalt 60, ethylene oxide, alcohol,microwave, ozone and etc.However, it is difficult to ensure drug properties due to chemical residues, or the cost is expensive.

After repeated process verification,JiNan ZPAE found steam sterilization is the most suitable method for herbal medicines. MYP series chamber is horizontal rectangular structure. It is designed with a unique moisture-proof device,powder agglomeration in traditional steam sterilization can be avoided.

Application

1. Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
2. Sterilizing and drying of herbal materials and powder type, such as Gastrodia elata, Panax notoginseng, Dendrobium, Ginseng, etc.
3. Spices, healthy foods, cereals, fish meal, dried wild vegetables, tea leaves, etc.



Features

1. Housing, support frame, chamber made of corrosion-resistant stainless steel material
2. Equipped with pressure safety interlock device and double door interlock.
3. Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
4. Standard GMP validation port.
5. Three-level authority management
6. Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
7. Validation through temperature uniformity

Acceptance after sterilization

1. Mold and miscellaneous bacteria <10cfu/p.
2. Powder is loose, not easy to agglomerate (different varieties, different situations).
3. Powder no change color.
4. Water content of powder<5%.

Technical Parameters

Design pressure	-0.1/0.3MPa
Working pressure	0.27MPa
Design Temperature	144℃
Working Temperature	138℃
Max. Vacuum	-0.096MPa
Thermal Uniform	≤±1℃
Steam pressure	0.3 – 0.5MPa
Water pressure	0.15 – 0.35MPa
Compressed Air pressure	0.5 – 0.7MPa

Specification

Model	Volume (L)	Chamber Size (L×W×Hmm)	Overall Size (L×W×Hmm)	Steam (KG)	CW (KG)	CA (L)	Power (KW)	N/W (KG)
MYP-0.6	650	1180×610×910	1540×1900×1940	37	270	60	2.4	1200
MYP-0.8	820	1480×610×910	1840×1900×1940	41	330	60	2.4	1400
MYP-1.0A	1000	1800×610×910	2160×1900×1940	46	390	60	2.4	1600
MYP-1.0B	1000	1250×680×1180	1610×1900×2040	46	390	60	2.4	1600
MYP-1.2	1200	1500×680×1180	1860×1900×2040	57	470	70	3.2	1700
MYP-1.5	1500	1900×680×1180	2260×1900×2040	64	570	70	4.2	1850
MYP-2.0A	2000	2600×680×1180	2960×1900×2040	80	750	70	4.2	2400
MYP-2.0B	2000	1700×1000×1200	2060×2600×2100	80	750	80	4.2	2400
MYP-3.0	3000	2520×1000×1200	2880×2600×2100	104	1100	90	5.7	3200
MYP-4.0	4000	3340×1000×1200	3700×2600×2100	130	1450	100	5.7	3700
MYP-5.0	5000	4200×1000×1200	4560×2600×2100	156	1800	100	7.7	4200
MYP-2.6	2600	1700×1000×1550	2060×2600×2340	95	1000	80	4.2	2700
MYP-3.9	3900	2520×1000×1550	2880×2600×2340	130	1450	100	5.7	3700
MYP-5.2	5200	3340×1000×1550	3700×2600×2340	160	1800	100	7.7	4200
MYP-6.5	6500	4200×1000×1550	4560×2600×2340	180	2100	100	7.7	5000
