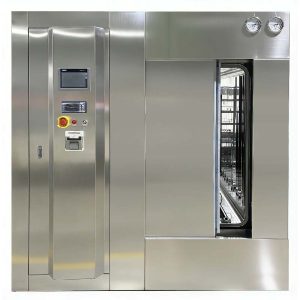

Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material

Traditional disinfection treatment on herbal medicines are cobalt 60, ethylene oxide, alcohol,microwave, ozone and etc.However, it is difficult to ensure drug properties due to chemical residues, or the cost is expensive.

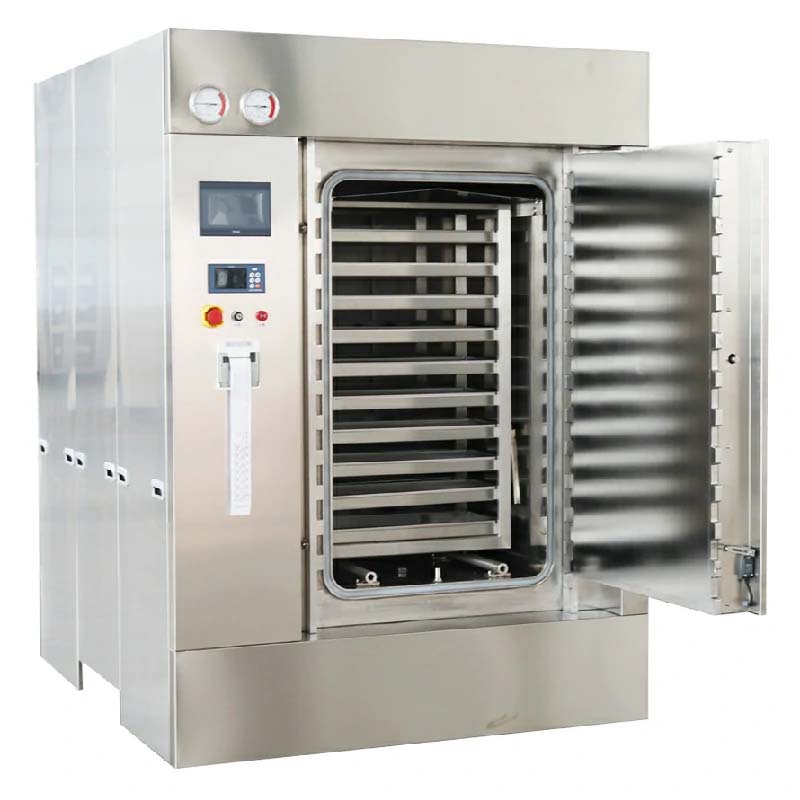

After repeated process verification,JiNan ZPAE found steam sterilization is the most suitable method for herbal medicines. MYD series chamber is horizontal rectangular structure. It is designed with a unique moisture-proof device,powder agglomeration in traditional steam sterilization can be avoided.

Application

1. Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
2. Sterilizing and drying of herbal materials and powder type, such as Gastrodia elata, Panax notoginseng, Dendrobium, Ginseng, etc.
3. Spices, healthy foods, cereals, fish meal, dried wild vegetables, tea leaves, etc.



Features

1. Housing, support frame, chamber made of corrosion-resistant stainless steel material
2. Equipped with pressure safety interlock device and double door interlock.
3. Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
4. Standard GMP validation port.
5. Three-level authority management
6. Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
7. Validation through temperature uniformity

Acceptance after sterilization

1. Mold and miscellaneous bacteria <10cfu/p.
2. Powder is loose, not easy to agglomerate (different varieties, different situations).
3. Powder no change color.
4. Water content of powder<5%.

Technical Parameters

Design pressure	-0.1/0.3MPa
Working pressure	0.27MPa
Design Temperature	144℃
Working Temperature	138℃
Max. Vacuum	-0.096MPa
Thermal Uniform	≤±1℃
Steam pressure	0.3 – 0.5MPa
Water pressure	0.15 – 0.35MPa
Compressed Air pressure	0.5 – 0.7MPa

Specification

Model	Volume (L)	Chamber Size (L×W×Hmm)	Overall Size (L×W×Hmm)	Steam (KG)	CW (KG)	CA (L)	Power (KW)	N/W (KG)
MYD-0.2	200	780×500×500	1020×1200×1740	16	90	45	1.2	700
MYD-0.25	250	1000×500×500	1240×1200×1740	18	110	45	1.2	750
MYD-0.28	280	780×600×600	1040×1270×1740	19	120	50	1.6	780
MYD-0.36	360	1000×600×600	1260×1270×1740	22	150	50	1.6	880
MYD-0.4	430	1200×600×600	1460×1270×1740	25	180	50	1.6	950
MYD-0.5	540	1500×600×600	1760×1270×1740	27	220	50	1.6	1000
MYD-0.6	650	1180×610×910	1440×1280×1940	37	270	60	2.4	1200
MYD-0.8	820	1480×610×910	1740×1280×1940	41	330	60	2.4	1400
MYD-1.0A	1000	1800×610×910	2060×1280×1940	46	390	60	2.4	1600
MYD-1.0B	1000	1250×680×1180	1530×1460×2040	51	400	70	2.4	1600
MYD-1.2	1200	1500×680×1180	1780×1460×2040	57	470	70	3.2	1700
MYD-1.5	1500	1900×680×1180	2180×1460×2040	64	570	70	4.2	1850
MYD-2.0A	2000	2600×680×1180	2900×1460×2040	80	750	70	4.2	2400
MYD-2.0B	2000	1700×1000×1200	2000×2000×2040	80	750	80	4.2	2400
MYD-2.5	2500	2100×1000×1200	2400×2000×2040	90	900	80	4.2	2700
MYD-3.0	3000	2520×1000×1200	2820×2000×2040	104	1100	90	5.7	3200
MYD-4.0	4000	3340×1000×1200	3640×2000×2040	130	1450	100	5.7	3700
MYD-5.0	5000	4200×1000×1200	4500×2000×2040	156	1800	100	7.7	4200
