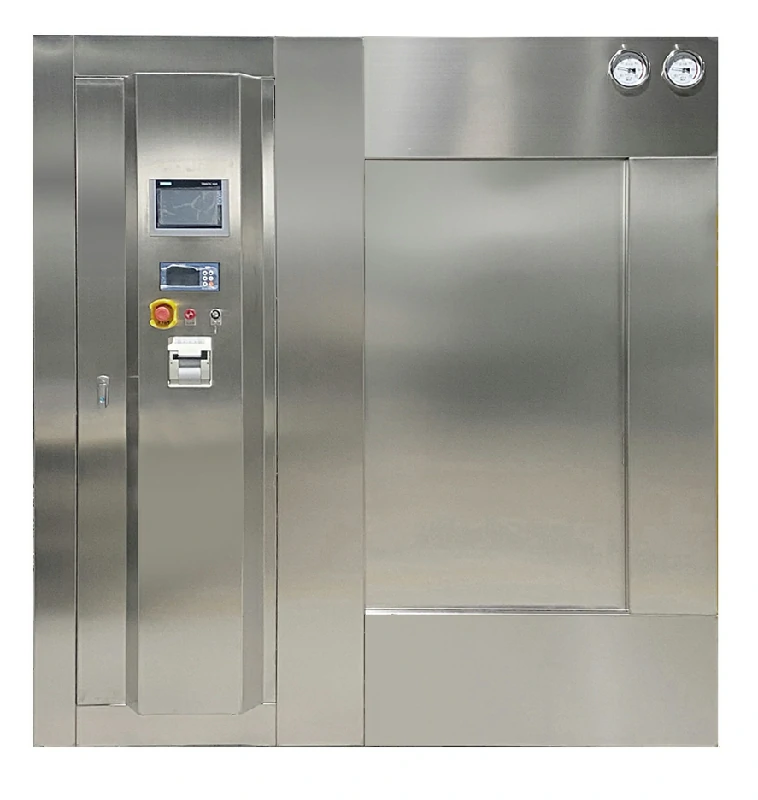

TFP Series Using a sliding door structure, the door can move horizontally from side to side.

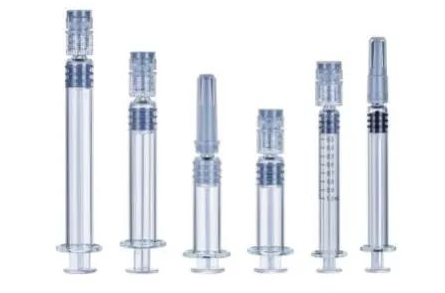

TFP Series Steam Air sterillizer is engineered for the counter pressure sterilization of aqueous solutions in sealed containers such as LVPs parenterals, vials, PFS syringes, etc. It adopts pressured steam and air mixture sterilization process, The air circulation fan and air deflector mix the pure steam and air together to ensure sterilization temperature uniformity.Coiled pipes at the liner of chamber, is for drying and cooling of the loads, by connecting steam and cooling water. The hot air flows through the loads, while moisture on the surface evaporated, then cooling water in the coiled pipes can reduce the temperature rapidly.During the whole working process, the unique counter pressure control can prevent sealed container from deforming or cracking due to excessive pressure difference between the inside and outside.
This series of equipment is widely used in the pharmaceutical industry, laboratories, and other fields for the harmless treatment of sealed liquids and similar items.
Application
- Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
- Glass ampoules, vials, controlled-use bottles for injections, oral solutions, etc.
Features
- Housing, support frame, chamber made of corrosion-resistant stainless steel material
- Equipped with pressure safety interlock device and double door interlock.
- Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
- Standard GMP validation port.
- Three-level authority management
- Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
- Validation through temperature uniformity
- Coil heating and cooling, fan forced airflow circulation, uniform temperature distribution
Technical parameters
| Design pressure | -0.1/0.3MPa |
| Working pressure | 0.27MPa |
| Design Temperature | 144℃ |
| Working Temperature | 138℃ |
| Max. Vacuum | -0.096MPa |
| Thermal Uniform | ≤±1℃ |
| Steam pressure | 0.3 – 0.5MPa |
| Water pressure | 0.15 – 0.35MPa |
| Compressed Air pressure | 0.5 – 0.7MPa |
Specification
| Model | Volume (L) |
Loaded Volume (L) |
Chamber Size (L×W×Hmm) |
Overall Size (L×W×Hmm) |
Steam (kg) |
Cool Water (kg) |
Pure Water (kg) |
CA (L) |
Power (kW) |
N/W (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| TFP-1.2 | 1200 | 860 | 1500×680×1180 | 1860×1900×2040 | 70 | 50 | 800 | 2500 | 5.2 | 1700 |
| TFP-1.5 | 1500 | 1090 | 1900×680×1180 | 2260×1900×2040 | 80 | 60 | 1000 | 3100 | 5.2 | 1850 |
| TFP-2.0 | 2000 | 1570 | 1700×1000×1200 | 2060×2600×2100 | 110 | 65 | 1200 | 4100 | 5.2 | 2400 |
| TFP-3.0 | 3000 | 2320 | 2520×1000×1200 | 2880×2600×2100 | 150 | 90 | 1500 | 6100 | 7.4 | 3200 |
| TFP-4.0 | 4000 | 3080 | 3340×1000×1200 | 3700×2600×2100 | 200 | 120 | 1650 | 8100 | 8.6 | 3700 |
| TFP-5.0 | 5000 | 3880 | 4200×1000×1200 | 4560×2600×2100 | 240 | 150 | 1800 | 10100 | 10.8 | 4200 |
| TFP-2.6 | 2600 | 2090 | 1700×1000×1550 | 2060×2600×2340 | 130 | 70 | 1350 | 5100 | 5.2 | 2700 |
| TFP-3.9 | 3900 | 3100 | 2520×1000×1550 | 2880×2600×2340 | 200 | 120 | 1650 | 8100 | 7.4 | 3700 |
| TFP-5.2 | 5200 | 4100 | 3340×1000×1550 | 3700×2600×2340 | 240 | 150 | 1800 | 10100 | 8.6 | 4200 |
| TFP-6.5 | 6500 | 5170 | 4200×1000×1550 | 4560×2600×2340 | 280 | 180 | 2000 | 13100 | 10.8 | 5000 |
