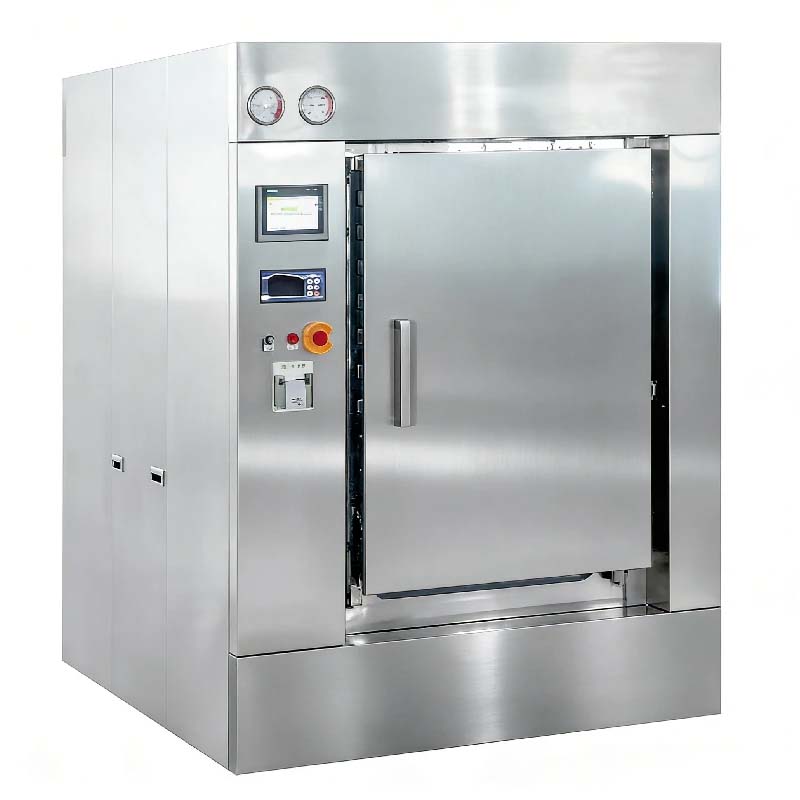

KMD Series Rapid Cooling Sterilizer employs saturated steam as sterilization medium, it is widely used for sterilization and cooling operations of various large volume infusion products such as glass bottles and soft baps that are resistant to moisture and heat.This series of small equipment (500ml/500bottles) adopts ordinary sterilization process,and large and medium-sizedequipment (≥500ml/1000 bottles) adopts unique sterilization process for sterilizing large infusions in glass bottles.The whole process only takes 60 minutes.
Application
- Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
- Large capacity infusion products, such as infusion bags, glass bottles, oral liquids, etc
Features
- Housing, support frame, chamber made of corrosion-resistant stainless steel material
- Equipped with pressure safety interlock device and double door interlock.
- Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
- Standard GMP validation port.
- Three-level authority management
- Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
- Validation through temperature uniformity
Technical parameters
| Design pressure | -0.1/0.3MPa |
| Working pressure | 0.27MPa |
| Design Temperature | 144℃ |
| Working Temperature | 138℃ |
| Max. Vacuum | -0.096MPa |
| Thermal Uniform | ≤±1℃ |
| Steam pressure | 0.3 – 0.5MPa |
| Water pressure | 0.15 – 0.35MPa |
| Compressed Air pressure | 0.5 – 0.7MPa |
Specification
| Model | Volume (L) | Chamber Size (L*W*Hmm) | Overall Size (L*W*Hmm) | Steam (kg) | Pure Water (kg) | CA (L) | Power (kW) | N/W (kg) |
|---|---|---|---|---|---|---|---|---|
| KMD-0.6 | 650 | 1180×610×910 | 1440×2100×1940 | 55 | 400 | 1400 | 1.7 | 1400 |
| KMD-0.8 | 820 | 1480×610×910 | 1740×2100×1940 | 65 | 500 | 1700 | 1.7 | 1500 |
| KMD-1.0 | 1000 | 1250×680×1180 | 1530×2300×2040 | 75 | 600 | 2100 | 2.4 | 1600 |
| KMD-1.2 | 1200 | 1500×680×1180 | 1780×2300×2040 | 85 | 800 | 2500 | 2.4 | 1800 |
| KMD-1.5 | 1500 | 1900×680×1180 | 2180×2300×2040 | 100 | 1000 | 3100 | 2.4 | 2000 |
| KMD-2.0 | 2000 | 1700×1000×1200 | 2000×2600×2040 | 135 | 1200 | 4100 | 3.2 | 2600 |
| KMD-2.5 | 2500 | 2100×1000×1200 | 2400×2600×2040 | 160 | 1350 | 5100 | 3.2 | 3000 |
| KMD-3.0 | 3000 | 2520×1000×1200 | 2820×2600×2040 | 185 | 1500 | 6100 | 5.7 | 3400 |
| KMD-4.0 | 4000 | 3340×1000×1200 | 3640×2600×2040 | 240 | 1650 | 8100 | 5.7 | 4000 |
| KMD-5.0 | 5000 | 4200×1000×1200 | 4500×2600×2040 | 300 | 1800 | 10100 | 5.7 | 4600 |
Why Choose Us
- Passed ISO:9001:2015 International Quality Management System
- Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
- 15 years of production experience
- 50,000 square meters of workshops, integrating Supply Chain, Laboratory, R&D, Manufacture and Sales
- Exclusive OEM & ODM service
- Professional technical engineer support
- Timely production & on-time delivery
