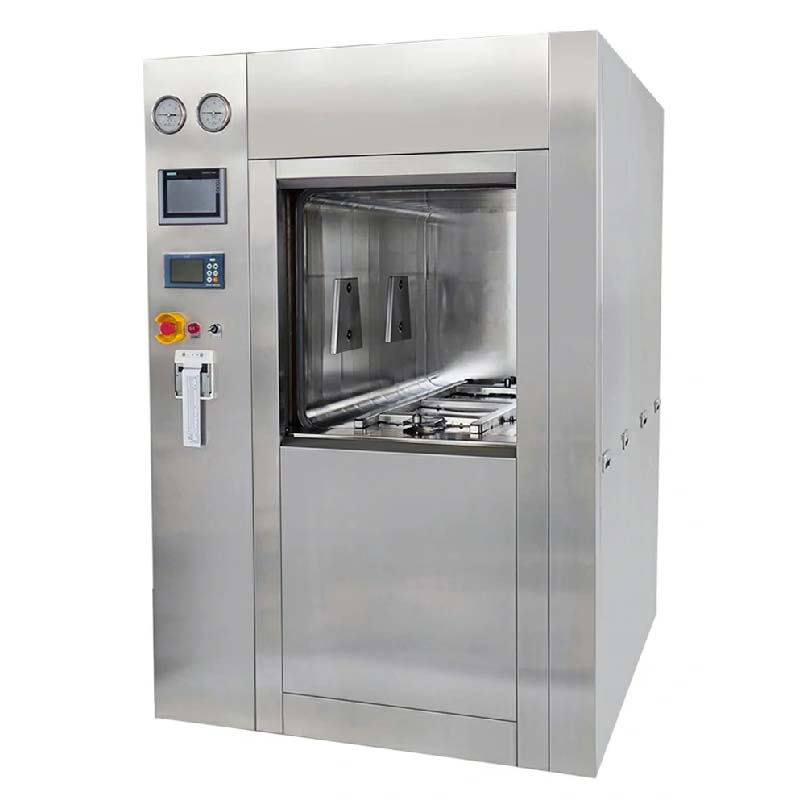

MDH Series Using a sliding door structure, the door can move up and down in thevertical direction.
MDD Series Pulse Vacuum Steam Sterilizer employs intense heat of saturated steam to build up pressure within the chamber and so kill bacterial spores by denaturing and coagulate their cell proteins through hydrolysis, then dry the loading with heat from jacket, while vacuuming out the humidity inside chamber.
Application
- Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
- Garments, tools,porous apparatus, rubbers, aluminum caps,to liquids. and etc.
Features
- Housing, support frame, chamber made of corrosion-resistant stainless steel material
- Equipped with pressure safety interlock device and double door interlock.
- Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
- Standard GMP validation port.
- Three-level authority management
- Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
- Validation through temperature uniformity
Technical Parameters
| Design pressure | -0.1/0.3MPa |
| Working pressure | 0.27MPa |
| Design Temperature | 144℃ |
| Working Temperature | 138℃ |
| Max. Vacuum | -0.096MPa |
| Thermal Uniform | ≤±1℃ |
| Steam pressure | 0.3 – 0.5MPa |
| Water pressure | 0.15 – 0.35MPa |
| Compressed Air pressure | 0.5 – 0.7MPa |
Specification
| Model | Volume (L) | Chamber Size (L*W*Hmm) | Overall Size (L*W*Hmm) | Steam (KG) | CW (KG) | CA (L) | Power (KW) | N/W (KG) |
|---|---|---|---|---|---|---|---|---|
| MDH-0.2 | 200 | 780×500×500 | 1100×1100×1740 | 16 | 90 | 45 | 1.2 | 700 |
| MDH-0.25 | 250 | 1000×500×500 | 1320×1100×1740 | 18 | 110 | 45 | 1.2 | 750 |
| MDH-0.28 | 280 | 780×600×600 | 1100×1200×1740 | 19 | 120 | 50 | 1.6 | 780 |
| MDH-0.36 | 360 | 1000×600×600 | 1320×1200×1740 | 22 | 150 | 50 | 1.6 | 880 |
| MDH-0.4 | 430 | 1200×600×600 | 1320×1200×1740 | 25 | 180 | 50 | 1.6 | 950 |
| MDH-0.5 | 540 | 1500×600×600 | 1620×1200×1740 | 27 | 220 | 50 | 1.6 | 1000 |
| MDH-0.45 | 450 | 1000×675×675 | 1360×1300×1940 | 25 | 180 | 50 | 1.6 | 950 |
| MDH-0.55 | 550 | 1200×675×675 | 1560×1300×1940 | 28 | 230 | 50 | 1.6 | 1000 |
| MDH-0.65 | 680 | 1500×675×675 | 1860×1300×1940 | 37 | 270 | 60 | 2.4 | 1200 |
| MDH-0.8 | 820 | 1800×675×675 | 2160×1300×2040 | 41 | 330 | 60 | 2.4 | 1400 |
