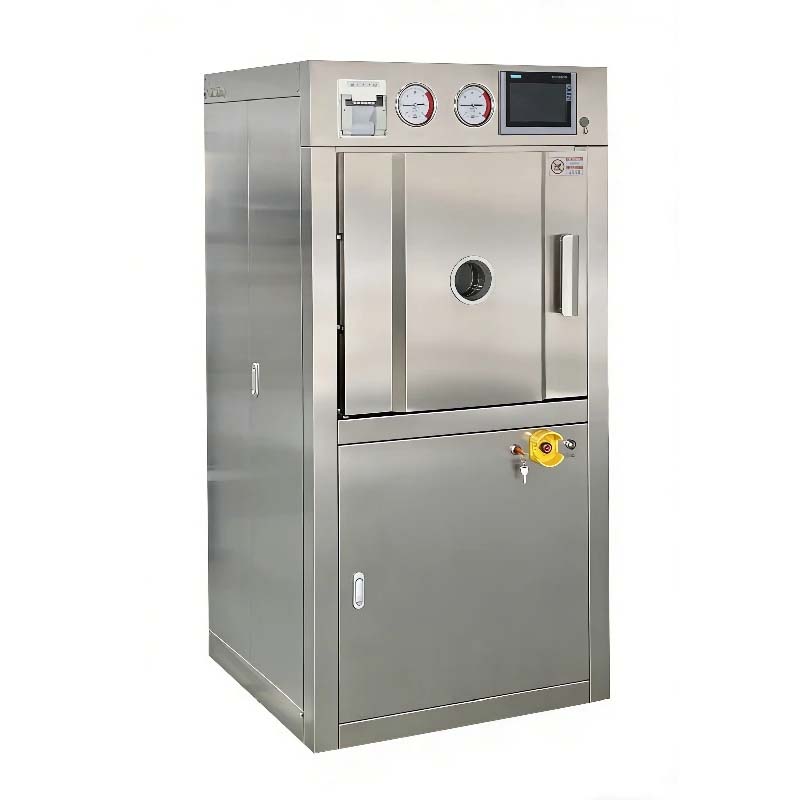

LABH series Laboratory Steam Sterilizer employs saturated steam penetrated by built-in steam generator as sterilization medium to perform moist heat sterilization on items.This machine was pioneered by JiNan ZPAE It is a new type of sterilizer that integrates multiple functions such as pulse vacuum,rapid liquid cooling,low-temperature discharge, and stand-alone type inactivation system for condensate.
Application
- Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
- Garments, tools,porous apparatus, rubbers, aluminum caps,to liquids. and etc.
Features
-
- Housing, support frame, chamber made of corrosion-resistant stainless steel material
- Equipped with pressure safety interlock device and double door interlock.
- Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
- Standard GMP validation port.
- Three-level authority management
- Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
- Validation through temperature uniformity
- Built-in steam generator, segmented heating control,stable steam
- Option: air filter with SIP function, biological seal, condensate re-sterilize,low temperature and low pressure discharge
- Built-in steam generator, segmented heating control,stable steam
- Patent electric quick-open door with safety interlock
- Food grade silicone rubber door seal, self-expand sealing.
Technical Parameters
| Design pressure | -0.1/0.3MPa |
| Working pressure | 0.27MPa |
| Design Temperature | 144℃ |
| Working Temperature | 138℃ |
| Max. Vacuum | -0.096MPa |
| Thermal Uniform | ≤±1℃ |
| Steam pressure | 0.3 – 0.5MPa |
| Water pressure | 0.15 – 0.35MPa |
| Compressed Air pressure | 0.5 – 0.7MPa |
Specification
| Model | Door | Volume (L) | Chamber Size (L×W×Hmm) | Overall Size (L×W×Hmm) | Cool Water (kg) | Pure Water (kg) | CA (L) | Power (kW) | N/W (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LABH-100D | Single Door | 100 | Ø500×520 | 800×780×1740 | 60 | 4 (10) | 240 | 1.5 | 400 |
| LABH-160S | Double Door | 160 | Ø500×820 | 1000×780×1740 | 90 | 6 (10) | 360 | 1.5 | 450 |
| LABH-200S | Double Door | 200 | Ø500×1020 | 1200×780×1740 | 120 | 8 (10) | 440 | 1.5 | 500 |
