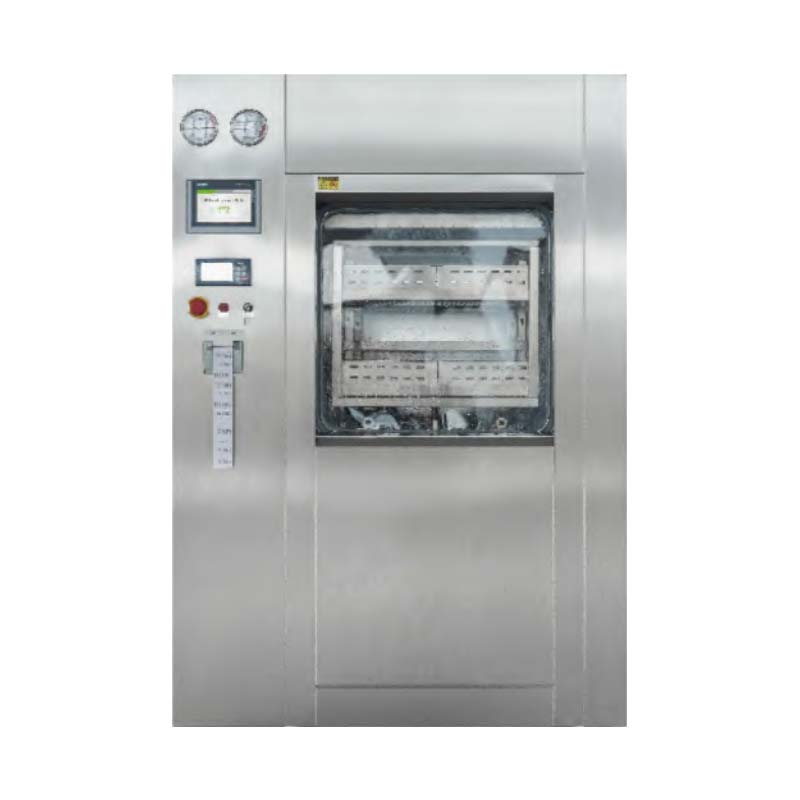

AZH Series Using a sliding door structure, the door can move up and down in thevertical direction.
AZH Series Ampoule Steam Sterilizer employs saturated steam as sterilization medium and mainly used for sterilization, leak detection, washing of ampoules, vials, tubes and bottles with injections and oral liquid dosage.
The leak detection method combines vacuum and colored water to ensure reliable detection of broken ampoules
Application
- Pharmaceutical industry, biological safety laboratory, SPF animal laboratory
- Glass or plastic ampoules, vials, controlled-use bottles for injections, oral solutions, etc.
Features
- Housing, support frame, chamber made of corrosion-resistant stainless steel material
- Equipped with pressure safety interlock device and double door interlock.
- Control system: PLC+HMl,automatic program control,display processstatus, temperature, pressure, time and etc. Data can be printed andstored.
- Standard GMP validation port.
- Three-level authority management
- Following GMP guidelines, FDA 21 CFR Part 11 (electronic records & signatures)
- Validation through temperature uniformity
Technical parameters
| Design pressure | -0.1/0.3MPa |
| Working pressure | 0.27MPa |
| Design Temperature | 144℃ |
| Working Temperature | 138℃ |
| Max. Vacuum | -0.096MPa |
| Thermal Uniform | ≤±1℃ |
| Steam pressure | 0.3 – 0.5MPa |
| Water pressure | 0.15 – 0.35MPa |
| Compressed Air pressure | 0.5 – 0.7MPa |
Specification
| Model | Volume (L) | Chamber Size (L×W×Hmm) | Overall Size (L×W×Hmm) | Steam (kg) | Cool Water (kg) | Pure Water (kg) | CA (L) | Power (kW) | N/W (kg) |
|---|---|---|---|---|---|---|---|---|---|
| AZH-0.55 | 550 | 1200×675×675 | 1560×1300×1940 | 40 | 25 | 300 | 50 | 1.6 | 1000 |
| AZH-0.65 | 680 | 1500×675×675 | 1860×1300×1940 | 45 | 30 | 400 | 60 | 1.6 | 1200 |
| AZH-0.8 | 820 | 1800×675×675 | 2160×1300×1940 | 50 | 40 | 500 | 60 | 1.6 | 1400 |
